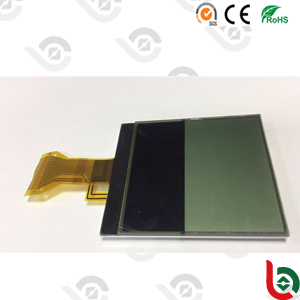

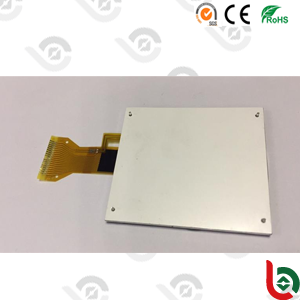

STN LCD Display

  • Stn LCD Display for Digital Weight Scale
  • Stn LCD Display for Digital Weight Scale
  • Stn LCD Display for Digital Weight Scale
  • Stn LCD Display for Digital Weight Scale
Stn LCD Display for Digital Weight ScaleStn LCD Display for Digital Weight ScaleStn LCD Display for Digital Weight ScaleStn LCD Display for Digital Weight Scale

Stn LCD Display for Digital Weight Scale

  • OPERATING VOLTAGE:3.3V
  • OPERATING CURRENT:2.0mA MAX(EXCEPT B/L)
  • DISPLAY TYPE:FFSTN,NEGATIVE
  • POLARIZER MODE:TRANSFLECTIVE
  • Product description: Stn LCD Display for Digital Weight Scale
  • INQUIRY

Technical Parameters and considerations

OPERATING   VOLTAGE:3.3V OPERATING CURRENT:2.0mA MAX(EXCEPT B/L)
DISPLAY   TYPE:FFSTN,NEGATIVE POLARIZER MODE:TRANSFLECTIVE
LCD DRIVE   METHOD:I/160DUTY I/14BIAS 16.0V VIEW DIRECTION:12:00 0'CLOCK
LCD   CONTROLLER:ST75161 BACK LIGHT:WHITE,SIDE LIGHT,3.3V
OPERATING   TEMPERATURE:-20℃ TO 70℃ STORAGE TEMPERATURE:-30℃ TO 80℃
DEFAULT   TOLERANCE:±0.3 ROHS STANDARD:YES

Absolute Maximum Ratings

Item

Symbol

MIN

Max

Unit

Supply Voltage

VDD

-0.3

3.6

V

VLCD

-0.3

13.5

V

Operating Temperature

Topr

-20

70

℃

Storage Temperature

Tstr

-30

80

℃

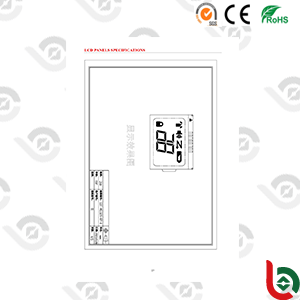

Product technical drawing


Display Image
